1. Product Fundamentals and Microstructural Features of Alumina Ceramics
1.1 Structure, Purity Grades, and Crystallographic Residence
(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O FIVE), or aluminum oxide, is one of the most extensively made use of technological ceramics in industrial engineering because of its exceptional equilibrium of mechanical stamina, chemical security, and cost-effectiveness.
When crafted right into wear liners, alumina porcelains are usually produced with pureness degrees ranging from 85% to 99.9%, with higher pureness corresponding to boosted solidity, wear resistance, and thermal efficiency.
The leading crystalline phase is alpha-alumina, which embraces a hexagonal close-packed (HCP) framework defined by strong ionic and covalent bonding, adding to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina porcelains consist of penalty, equiaxed grains whose size and circulation are managed during sintering to optimize mechanical buildings.
Grain sizes generally vary from submicron to several micrometers, with finer grains usually enhancing fracture sturdiness and resistance to fracture propagation under rough loading.
Minor additives such as magnesium oxide (MgO) are often introduced in trace amounts to hinder uncommon grain development during high-temperature sintering, making sure consistent microstructure and dimensional security.
The resulting product shows a Vickers solidity of 1500– 2000 HV, significantly exceeding that of solidified steel (generally 600– 800 HV), making it incredibly resistant to surface area destruction in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Issues
Alumina ceramic wear liners are picked largely for their exceptional resistance to abrasive, abrasive, and moving wear systems common wholesale material managing systems.
They have high compressive stamina (approximately 3000 MPa), good flexural stamina (300– 500 MPa), and superb rigidity (Youthful’s modulus of ~ 380 GPa), enabling them to endure intense mechanical loading without plastic contortion.
Although naturally fragile compared to metals, their reduced coefficient of friction and high surface solidity lessen bit attachment and reduce wear prices by orders of magnitude about steel or polymer-based alternatives.
Thermally, alumina maintains architectural stability approximately 1600 ° C in oxidizing atmospheres, permitting usage in high-temperature processing settings such as kiln feed systems, boiler ducting, and pyroprocessing devices.

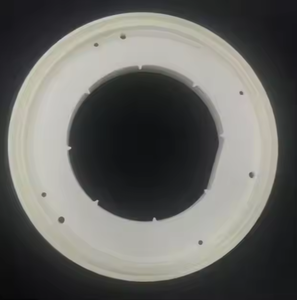

( Alumina Ceramic Wear Liners)
Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional stability throughout thermal cycling, reducing the threat of fracturing due to thermal shock when correctly installed.
Additionally, alumina is electrically shielding and chemically inert to the majority of acids, alkalis, and solvents, making it ideal for destructive settings where metallic liners would degrade swiftly.
These mixed residential properties make alumina porcelains ideal for protecting important infrastructure in mining, power generation, cement manufacturing, and chemical handling sectors.
2. Production Processes and Layout Assimilation Strategies
2.1 Shaping, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear liners involves a series of accuracy manufacturing actions designed to accomplish high density, minimal porosity, and regular mechanical efficiency.
Raw alumina powders are refined through milling, granulation, and creating methods such as completely dry pushing, isostatic pushing, or extrusion, depending on the wanted geometry– tiles, plates, pipelines, or custom-shaped segments.
Green bodies are after that sintered at temperature levels in between 1500 ° C and 1700 ° C in air, promoting densification via solid-state diffusion and achieving relative thickness surpassing 95%, commonly coming close to 99% of theoretical density.
Complete densification is essential, as recurring porosity functions as anxiety concentrators and accelerates wear and fracture under service problems.
Post-sintering procedures may include ruby grinding or washing to achieve limited dimensional tolerances and smooth surface finishes that decrease friction and particle trapping.
Each batch undergoes extensive quality assurance, including X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural examination, and solidity and bend screening to validate conformity with global requirements such as ISO 6474 or ASTM B407.
2.2 Mounting Methods and System Compatibility Factors To Consider
Efficient integration of alumina wear liners into industrial devices needs cautious interest to mechanical attachment and thermal expansion compatibility.
Typical setup techniques consist of adhesive bonding making use of high-strength ceramic epoxies, mechanical fastening with studs or supports, and embedding within castable refractory matrices.
Adhesive bonding is widely used for level or carefully bent surface areas, giving consistent stress circulation and vibration damping, while stud-mounted systems permit very easy substitute and are favored in high-impact zones.
To fit differential thermal development between alumina and metal substrates (e.g., carbon steel), crafted voids, versatile adhesives, or certified underlayers are included to stop delamination or cracking throughout thermal transients.
Developers have to additionally think about edge defense, as ceramic tiles are at risk to chipping at revealed corners; services consist of diagonal sides, steel shrouds, or overlapping ceramic tile setups.
Appropriate installation makes certain lengthy life span and maximizes the protective function of the lining system.
3. Put On Systems and Efficiency Examination in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear liners master settings dominated by 3 primary wear devices: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, difficult fragments or surfaces straight gouge the lining surface, an usual occurrence in chutes, hoppers, and conveyor shifts.
Three-body abrasion involves loosened particles caught in between the lining and relocating material, bring about rolling and damaging activity that gradually eliminates product.
Erosive wear happens when high-velocity fragments impinge on the surface area, particularly in pneumatic conveying lines and cyclone separators.
Because of its high solidity and low crack durability, alumina is most efficient in low-impact, high-abrasion scenarios.
It executes extremely well against siliceous ores, coal, fly ash, and cement clinker, where wear prices can be decreased by 10– 50 times compared to light steel linings.
Nevertheless, in applications involving duplicated high-energy impact, such as key crusher chambers, crossbreed systems combining alumina ceramic tiles with elastomeric backings or metallic guards are often utilized to take in shock and prevent crack.
3.2 Field Screening, Life Cycle Evaluation, and Failing Setting Evaluation
Performance examination of alumina wear liners involves both laboratory screening and area surveillance.
Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion examination give comparative wear indices, while tailored slurry disintegration rigs mimic site-specific problems.
In commercial settings, wear price is usually determined in mm/year or g/kWh, with service life projections based upon initial density and observed deterioration.
Failing settings include surface polishing, micro-cracking, spalling at edges, and full tile dislodgement because of sticky destruction or mechanical overload.
Root cause analysis typically reveals setup mistakes, incorrect quality selection, or unanticipated impact loads as primary factors to early failing.
Life cycle price evaluation constantly demonstrates that regardless of greater first expenses, alumina liners offer premium overall cost of possession as a result of extensive substitute periods, lowered downtime, and reduced maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Throughout Heavy Industries
Alumina ceramic wear linings are deployed across a wide spectrum of industrial fields where material deterioration poses operational and financial challenges.
In mining and mineral processing, they protect transfer chutes, mill linings, hydrocyclones, and slurry pumps from abrasive slurries consisting of quartz, hematite, and various other tough minerals.
In power plants, alumina tiles line coal pulverizer air ducts, central heating boiler ash hoppers, and electrostatic precipitator parts exposed to fly ash disintegration.
Cement suppliers make use of alumina liners in raw mills, kiln inlet areas, and clinker conveyors to fight the very unpleasant nature of cementitious materials.
The steel sector employs them in blast furnace feed systems and ladle shrouds, where resistance to both abrasion and moderate thermal loads is crucial.
Also in much less conventional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics offer sturdy security versus chemically aggressive and coarse materials.
4.2 Arising Patterns: Composite Solutions, Smart Liners, and Sustainability
Present study focuses on enhancing the durability and functionality of alumina wear systems through composite layout.
Alumina-zirconia (Al ₂ O TWO-ZrO TWO) compounds utilize transformation strengthening from zirconia to enhance split resistance, while alumina-titanium carbide (Al two O ₃-TiC) grades supply improved performance in high-temperature moving wear.
One more technology involves embedding sensing units within or below ceramic linings to keep an eye on wear development, temperature level, and influence regularity– making it possible for anticipating maintenance and digital twin integration.
From a sustainability point of view, the prolonged service life of alumina liners lowers product consumption and waste generation, lining up with circular economic climate concepts in commercial operations.
Recycling of invested ceramic liners right into refractory accumulations or construction products is also being checked out to decrease ecological impact.
To conclude, alumina ceramic wear liners represent a cornerstone of modern industrial wear protection innovation.
Their exceptional hardness, thermal stability, and chemical inertness, combined with fully grown manufacturing and installment methods, make them important in combating material degradation throughout hefty markets.
As product science developments and electronic tracking becomes a lot more integrated, the next generation of wise, resistant alumina-based systems will certainly additionally enhance operational effectiveness and sustainability in rough environments.
