1. Material Features and Structural Style
1.1 Make-up and Crystalline Phases of Alumina

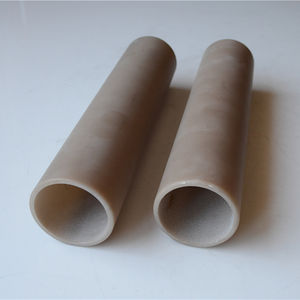

( Alumina Ceramic Tubes)
Alumina (Al ₂ O SIX) ceramic tubes are mainly made from high-purity light weight aluminum oxide, with pureness degrees typically ranging from 90% to 99.8%, depending on the desired application.
The leading crystalline stage in fully dense, high-temperature sintered tubes is α-alumina (corundum), which displays a trigonal crystal structure and exceptional thermodynamic stability.
This stage change from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina takes place over 1100 ° C and causes a dense, interlocking microstructure that gives exceptional mechanical stamina and chemical resistance.
Higher pureness qualities (≥ 99.5%) maximize firmness, use resistance, and dielectric efficiency, while lower-purity formulas may integrate second phases like mullite or glazed grain limit phases to decrease cost or dressmaker thermal expansion.
The capability to control grain size, porosity, and phase structure throughout processing allows engineers to make improvements alumina tubes for details functional demands across varied commercial domain names.
1.2 Mechanical, Thermal, and Electrical Quality
Alumina ceramic tubes display an unique combination of physical homes that make them important sought after engineering atmospheres.
With a Vickers solidity going beyond 1500 HV, they are highly resistant to abrasion and disintegration, outmatching most metals and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, allowing architectural use under high mechanical lots, while flexural stamina normally varies from 300 to 500 MPa, depending on density and surface finish.
Thermally, alumina maintains stability as much as 1700 ° C in oxidizing atmospheres, with a reduced coefficient of thermal expansion (~ 8 ppm/K), adding to superb thermal shock resistance when effectively developed.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to steels or light weight aluminum nitride, it is sufficient for lots of high-temperature applications where electrical insulation and structural stability are prioritized.
Electrically, alumina is an outstanding insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric stamina (> 15 kV/mm), making it perfect for electric feedthroughs, sensor real estates, and high-voltage insulation.

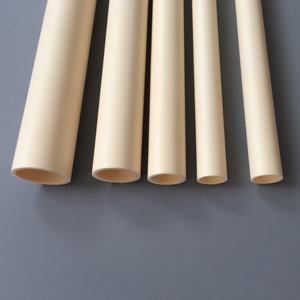

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Shaping and Creating Techniques
The production of alumina ceramic tubes involves sophisticated forming techniques tailored to accomplish specific dimensions, wall surface thickness harmony, and surface top quality.
Common strategies include extrusion, isostatic pushing, and slip casting, each matched to different size varieties and efficiency requirements.
Extrusion is widely used for long, straight tubes with regular cross-sections, where a plasticized alumina paste is required with a die and cut to size prior to drying and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) uses consistent pressure from all instructions to compact eco-friendly bodies, decreasing distortion and boosting density homogeneity.
Slide casting, including the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is optimal for complex or large-diameter geometries with variable wall density.
After forming, tubes go through mindful drying out to stop fracturing, complied with by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional security.
2.2 Completing and Quality Control
Post-sintering procedures such as centerless grinding, splashing, and brightening are employed to attain limited tolerances, smooth surface finishes, and exact internal and outer sizes.
Tolerances as tight as ± 0.01 mm are attainable for critical applications in semiconductor handling or analytical instrumentation.
Surface area roughness can be decreased to Ra < 0.1 µm, reducing bit trapping and boosting compatibility with ultra-high vacuum (UHV) or cleanroom settings.
Non-destructive testing approaches– including ultrasonic examination, X-ray radiography, and color penetrant screening– ensure structural integrity and lack of splits or voids.
Dimensional metrology using coordinate determining makers (CMM) or laser scanning validates compliance with design requirements, specifically for customized or high-volume manufacturing runs.
3. Useful Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among the most compelling benefits of alumina ceramic tubes is their ability to stand up to severe thermal and chemical conditions where metals and polymers fall short.
They remain dimensionally secure and mechanically durable in continual service at temperature levels over 1500 ° C, making them appropriate for furnace linings, thermocouple defense sheaths, and glowing heating unit tubes.
Their inertness to molten metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and many acids (other than hydrofluoric and hot phosphoric acid) allows use in metallurgical and chemical processing equipment.
In oxidizing and lowering ambiences, alumina does not weaken or militarize undesirable responses, preserving process pureness in semiconductor and glass manufacturing.
This chemical inertness also protects against contamination in high-purity liquid taking care of systems, including those used in pharmaceutical and food handling industries.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma environments, alumina tubes serve as insulating barriers that preserve circuit stability under high voltage and raised temperature.
They are used in high-intensity discharge (HID) lamps, where they include ionized gases at temperature levels going beyond 1000 ° C while withstanding electrical potentials of several kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric windows or gas distribution elements, withstanding ion barrage and thermal cycling without breaking or outgassing.
Their low dielectric loss and high arc resistance protect against electric tracking and break down, making sure lengthy life span in switchgear and power transmission parts.
These homes are essential in preserving procedure stability and tools dependability in advanced manufacturing and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Processing Equipments
Alumina ceramic tubes are indispensable to a wide variety of commercial processes that require sturdiness under severe conditions.
In thermal handling, they serve as safety sheaths for thermocouples and burner in kilns, heating systems, and warmth therapy equipment, securing sensitive parts from harsh atmospheres and mechanical wear.
In liquid handling, they move aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock allows rapid home heating and cooling down cycles without failure, a crucial benefit in cyclic commercial operations.
In glass manufacturing, alumina tubes guide molten glass circulations and support developing equipment, resisting disintegration from thick, high-temperature thaws.
4.2 Advanced Technologies and Future Assimilation
Past standard commercial usages, alumina tubes are finding brand-new functions in cutting-edge modern technologies.
In semiconductor fabrication, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) reactors and ion implantation systems, where particle generation and metallic contamination have to be decreased.
In medical tools, biocompatible alumina tubes serve as protecting components in medical devices, dental implants, and analysis sensors.
Research study is discovering functionalized alumina tubes with embedded sensors or conductive traces for wise architectural monitoring in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is becoming an approach to create complex tube geometries with inner channels or graded make-ups, enabling next-generation warmth exchangers and microreactors.
As industries press towards higher performance, cleaner processes, and greater integrity, alumina ceramic tubes continue to evolve as enabling components in the facilities of modern-day technology.
In summary, alumina ceramic tubes represent a mature yet dynamically advancing course of engineered materials, integrating phenomenal thermal, mechanical, and electrical performance in a single inorganic channel.
Their versatility across extreme settings ensures their continued relevance in both established industrial systems and arising sophisticated applications.
