1. Material Basics and Crystallographic Feature
1.1 Stage Structure and Polymorphic Actions

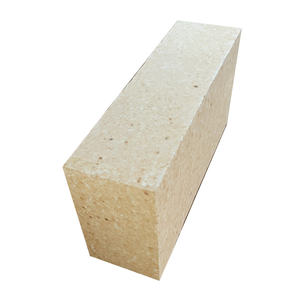

(Alumina Ceramic Blocks)
Alumina (Al ₂ O FIVE), specifically in its α-phase form, is among the most commonly used technical porcelains because of its exceptional balance of mechanical strength, chemical inertness, and thermal stability.
While light weight aluminum oxide exists in a number of metastable stages (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline structure at heats, characterized by a thick hexagonal close-packed (HCP) arrangement of oxygen ions with light weight aluminum cations inhabiting two-thirds of the octahedral interstitial websites.
This gotten framework, called diamond, confers high latticework power and solid ionic-covalent bonding, leading to a melting point of about 2054 ° C and resistance to phase transformation under extreme thermal conditions.
The change from transitional aluminas to α-Al ₂ O six commonly takes place above 1100 ° C and is accompanied by significant volume contraction and loss of surface, making phase control essential throughout sintering.
High-purity α-alumina blocks (> 99.5% Al Two O THREE) exhibit remarkable efficiency in severe settings, while lower-grade compositions (90– 95%) might include second phases such as mullite or glassy grain border phases for economical applications.
1.2 Microstructure and Mechanical Honesty
The performance of alumina ceramic blocks is exceptionally affected by microstructural features including grain dimension, porosity, and grain limit communication.
Fine-grained microstructures (grain size < 5 µm) usually supply greater flexural toughness (approximately 400 MPa) and boosted fracture durability compared to grainy counterparts, as smaller sized grains hamper split breeding.
Porosity, also at low degrees (1– 5%), significantly minimizes mechanical stamina and thermal conductivity, demanding full densification via pressure-assisted sintering methods such as hot pressing or hot isostatic pressing (HIP).
Ingredients like MgO are typically introduced in trace quantities (≈ 0.1 wt%) to hinder abnormal grain growth during sintering, making certain consistent microstructure and dimensional security.
The resulting ceramic blocks show high hardness (≈ 1800 HV), exceptional wear resistance, and low creep prices at raised temperature levels, making them suitable for load-bearing and rough settings.
2. Manufacturing and Handling Techniques

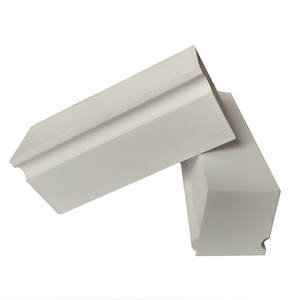

( Alumina Ceramic Blocks)
2.1 Powder Preparation and Shaping Methods
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders originated from calcined bauxite via the Bayer process or synthesized through precipitation or sol-gel paths for higher purity.
Powders are crushed to accomplish slim fragment dimension circulation, improving packing density and sinterability.
Forming into near-net geometries is accomplished via different forming strategies: uniaxial pressing for basic blocks, isostatic pushing for uniform density in complicated forms, extrusion for lengthy areas, and slip casting for detailed or big parts.
Each technique influences eco-friendly body thickness and homogeneity, which straight impact last residential or commercial properties after sintering.
For high-performance applications, advanced developing such as tape casting or gel-casting may be used to accomplish premium dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperatures between 1600 ° C and 1750 ° C allows diffusion-driven densification, where bit necks grow and pores shrink, resulting in a completely thick ceramic body.
Atmosphere control and specific thermal accounts are necessary to protect against bloating, warping, or differential shrinkage.
Post-sintering procedures consist of ruby grinding, splashing, and polishing to accomplish tight resistances and smooth surface coatings needed in securing, moving, or optical applications.
Laser reducing and waterjet machining enable accurate modification of block geometry without inducing thermal anxiety.
Surface area therapies such as alumina covering or plasma spraying can better enhance wear or deterioration resistance in specialized service conditions.
3. Functional Characteristics and Performance Metrics
3.1 Thermal and Electrical Actions
Alumina ceramic blocks display moderate thermal conductivity (20– 35 W/(m · K)), considerably greater than polymers and glasses, allowing reliable warm dissipation in electronic and thermal monitoring systems.
They keep structural integrity approximately 1600 ° C in oxidizing atmospheres, with low thermal development (≈ 8 ppm/K), adding to exceptional thermal shock resistance when appropriately made.
Their high electric resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric toughness (> 15 kV/mm) make them perfect electric insulators in high-voltage environments, including power transmission, switchgear, and vacuum cleaner systems.
Dielectric constant (εᵣ ≈ 9– 10) continues to be steady over a broad regularity array, supporting usage in RF and microwave applications.
These residential or commercial properties allow alumina obstructs to function reliably in atmospheres where natural materials would certainly deteriorate or fail.
3.2 Chemical and Ecological Resilience
One of the most important attributes of alumina blocks is their remarkable resistance to chemical strike.
They are very inert to acids (other than hydrofluoric and warm phosphoric acids), antacid (with some solubility in strong caustics at elevated temperatures), and molten salts, making them suitable for chemical handling, semiconductor manufacture, and contamination control devices.
Their non-wetting behavior with numerous molten steels and slags enables use in crucibles, thermocouple sheaths, and furnace cellular linings.
Furthermore, alumina is safe, biocompatible, and radiation-resistant, expanding its utility into medical implants, nuclear securing, and aerospace components.
Minimal outgassing in vacuum environments further qualifies it for ultra-high vacuum cleaner (UHV) systems in research study and semiconductor manufacturing.
4. Industrial Applications and Technical Assimilation
4.1 Architectural and Wear-Resistant Elements
Alumina ceramic blocks work as important wear components in markets ranging from mining to paper manufacturing.
They are utilized as linings in chutes, receptacles, and cyclones to withstand abrasion from slurries, powders, and granular products, significantly prolonging life span contrasted to steel.
In mechanical seals and bearings, alumina obstructs supply reduced rubbing, high hardness, and rust resistance, reducing upkeep and downtime.
Custom-shaped blocks are incorporated into reducing tools, dies, and nozzles where dimensional security and side retention are extremely important.
Their light-weight nature (density ≈ 3.9 g/cm SIX) also contributes to power cost savings in moving components.
4.2 Advanced Design and Emerging Utilizes
Beyond typical duties, alumina blocks are progressively utilized in advanced technical systems.
In electronics, they operate as protecting substrates, warm sinks, and laser cavity elements as a result of their thermal and dielectric buildings.
In power systems, they function as solid oxide fuel cell (SOFC) elements, battery separators, and blend reactor plasma-facing materials.
Additive production of alumina by means of binder jetting or stereolithography is arising, allowing intricate geometries previously unattainable with standard forming.
Hybrid frameworks combining alumina with steels or polymers via brazing or co-firing are being established for multifunctional systems in aerospace and defense.
As material scientific research advances, alumina ceramic blocks remain to evolve from easy architectural components into energetic components in high-performance, sustainable design services.
In recap, alumina ceramic blocks stand for a fundamental course of advanced ceramics, combining durable mechanical performance with exceptional chemical and thermal security.
Their adaptability throughout industrial, digital, and clinical domain names underscores their enduring worth in contemporary design and technology development.
