Every part in a railway system have to work well. This maintains the system secure and efficient. Train casting components are very crucial. They provide assistance, connect things, and conduct signals. Their high quality affects exactly how secure the railway network is. When you purchase these parts for South Africa, South America, or Russia, you should discover good makers. To be successful, you need to understand the neighborhood technical guidelines. Here are 5 crucial high quality criteria you should constantly comply with.
1. Product Structure & Mechanical Properties: The Structure of Top quality
The performance of actors iron relies on its certain chemical make-up and spreading procedure, and need to satisfy the global or regional standards of the target audience. A dependable railway spreading parts supplier will certainly offer full material traceability.
1.1 Make-up Specifications: Should follow criteria such as International Requirements (ISO), European Standards (EN), Russian GOST requirements, or those typically made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The web content of harmful components like phosphorus and sulfur should be purely controlled.
1.2 Mechanical Characteristics: Focus on tensile strength, yield toughness, solidity, and prolongation. For ductile iron, describe criteria such as ISO 1083, EN 1563, or GOST 28394. Procurement ought to need distributors to give product certifications and mechanical test reports that adhere to the target audience’s requirements.

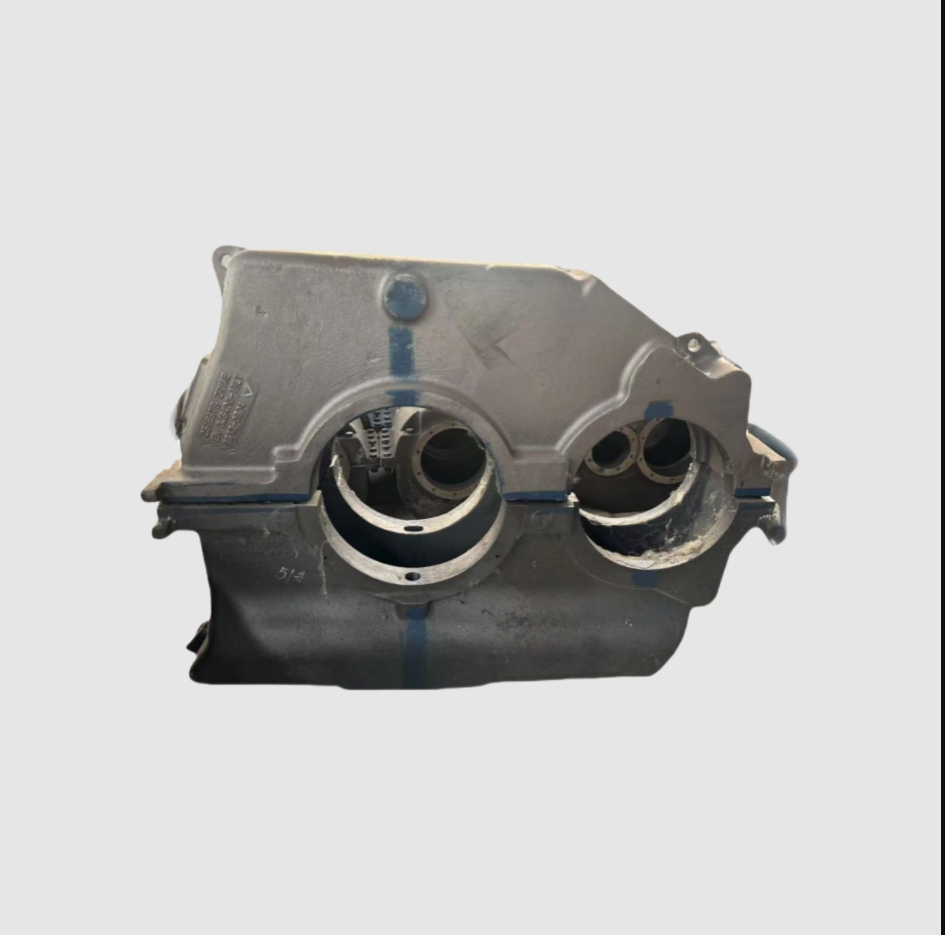

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Tolerance Control: Making Certain a “Perfect Fit”
Railway tasks worldwide have strict demands for dimensional interchangeability; any variance can impact system combination. Accuracy is a mark of remarkable railway casting manufacturers.
2.1 Vital Dimensions: All user interface measurements and installing hole placements for all train spreading parts should be 100% checked.
2.2 Resistance Specifications: Must adhere to worldwide acknowledged requirements like ISO 2768, or particular resistance needs clearly set with the client. For the Russian and CIS markets, special attention needs to be paid to following relevant tolerance specifications in GOST 30893.
3. Restrictions on Casting Defects: Removing Internal Hidden Dangers
The approval standards for casting problems need to be clearly defined in agreements and based on internationally or regionally acknowledged specs. Leading railway spreading components supplier operations use rigorous non-destructive testing.
3.1 Surface Issues: Specifications like ISO 8062 can be referenced for assessing spreading surface area quality. Fractures, chilly shuts, and various other issues affecting serviceability are not allowed.
3.2 Internal Flaws: For vital load-bearing train spreading components, non-destructive testing (e.g., ultrasonic, radiographic) need to be executed according to standards like ISO 4990, EN 12680, or the GOST R 55724 series, with clear acceptance levels for flaws.
4. Metallographic Structure & Internal Quality
The tiny framework of the product is the vital basis for evaluating whether its internal top quality fulfills the criterion. This is a crucial look for any expert railway casting parts supplier.
4.1 Ductile Iron: The assessment of nodularization price need to follow requirements such as ISO 945-1 or GOST 3443 to ensure its mechanical properties satisfy the needs for usage under intricate working problems.
4.2 Graphite Morphology & Matrix Structure: The metallographic evaluation report is an essential file for confirming the stability of the production procedure and must abide by the relevant international or local criteria.
(Railway Cast Iron Gearbox)
5. Anti-Corrosion Therapy & Surface Area Quality: Withstanding Harsh Environments
Given South Africa’s coastal high salinity, South America’s tropical rainforest moisture, and Russia’s severe cold and de-icing salts, anti-corrosion treatment for railway spreading parts is critical.
5.1 Therapy Procedures: Define the type of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy finishing, etc, and specify essential indicators like layer thickness, attachment ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Specifications: Should take note of certain requirements of the target audience, such as Russia’s GOST 9.307 anti-corrosion system qualification, or South Africa’s SANS (South African National Requirement) requirements. An international railway spreading makers will certainly be familiar with these varied requirements.
Luoyang Fonyo Heavy Industries Co., Ltd. is a leading maker of heavy industrial spreadings and parts, focusing on supplying premium steel spreadings, including carbon steel, high manganese steel, alloy steel, and heat-resistant steel spreadings. With a thorough service version integrating design, casting, machining, and service, Fonyo guarantees that each product meets extensive quality and performance standards to satisfy the demanding requirements of various hefty sectors.
If you are looking for a trusted supplier of bolted crane rail clips, Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
