1. Introduction to Oil Immersed Transformers
In the elaborate internet of our modern-day electric grid, transformers play a crucial duty, quietly stepping voltage backwards and forwards to guarantee electricity can be transferred efficiently over fars away and distributed safely to our homes and markets. Amongst the numerous types available, the oil submersed transformer stands as a testament to proven dependability and sturdiness. For decades, these workhorses have formed the backbone of power systems worldwide.
An oil submersed transformer is a type of electric transformer that makes use of a customized protecting oil as both a coolant and a protecting medium. This design is mainly utilized for tool to high-power applications, making it a foundation of electrical infrastructure. This guide dives deep into the globe of oil immersed power transformers and oil submersed circulation transformers, exploring their innovation, applications, and their evolving duty in a period of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer includes a magnetic core and copper or aluminum windings housed inside a secured tank filled with shielding oil. The primary function of the oil is twofold:
1. Insulation: The oil possesses high dielectric stamina, successfully insulating the high-voltage windings from the transformer’s core and based container. This prevents short circuits and electric break downs.
2. Air conditioning: As the transformer runs, the windings generate considerable warmth as a result of I ² R losses. The flowing oil absorbs this warm, convects it to the transformer’s tank walls, and dissipates it right into the surrounding air. Bigger systems frequently include radiators or fins to enhance the surface area for much more efficient cooling.
This dual-purpose use oil makes the oil immersed transformer extremely effective and robust, capable of managing high loads and holding up against short-term overloads better than many dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil submersed transformers, they offer unique functions within the power system network. Understanding the difference is essential.
An oil submersed power transformer is a heavyweight, commonly utilized in transmission networks at producing terminals and significant substations. Their main role is to “step-up” the voltage produced at the nuclear power plant to very high degrees (e.g., 138 kV, 230 kV, 500 kV and over) for effective long-distance transmission, and to “step-down” the voltage at obtaining substations for additional distribution. They are defined by their extremely high power ratings (typically going beyond 100 MVA), intricate construction, and on-load tap changers for voltage guideline.
An oil engaged circulation transformer, on the various other hand, performs the last step in the power delivery chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the reduced voltages (e.g., 400/230 V) used by commercial and household customers. You typically discover them on utility poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power scores (usually up to 2,500 kVA), and are made for maximum effectiveness at reduced, extra continuous loads.

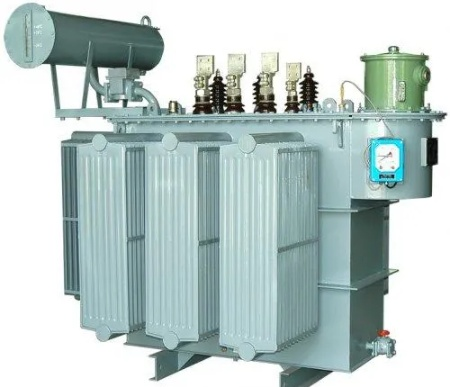

(Oil immersed power transformer)
2. Key Benefits of Oil Immersed Transformers
The enduring appeal of the oil submersed transformer is not unintended. It offers a suite of compelling benefits that make it the preferred choice for lots of demanding applications.
2.1 Superior Cooling and Overload Capacity
The premium thermal ability of oil contrasted to air allows an oil immersed power transformer to handle and dissipate warm much more effectively. This equates to a greater overload capability. During periods of height electricity demand, an oil immersed transformer can take care of short-term overloads without enduring damages, a crucial function for preserving grid security. The oil’s flow ensures also heat distribution, stopping localized locations that can weaken insulation with time.
2.2 Improved Insulation and Long Life Span
The combination of top quality mineral oil and diligently fertilized paper insulation develops a dielectric system of remarkable stamina. This durable insulation system secures the transformer from voltage rises and transients, adding to an operational life-span that can encompass 30-40 years or more with appropriate maintenance. The sealed storage tank likewise secures the internal components from wetness, dust, and various other climatic impurities.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is frequently one of the most affordable selection. The materials utilized– mineral oil, steel storage tank, and copper/aluminum windings– offer a desirable equilibrium of performance and price. The high effectiveness of these transformers, especially at their rated load, leads to lower power losses over their life time, bring about substantial cost savings for energy firms and large industrial individuals.
3. Hot Topics and Future Trends
The world of oil submersed transformers is not fixed. It is constantly progressing to meet brand-new obstacles and integrate with modern-day technologies.
3.1 Biodegradable and Fire-Resistant Oils
Environmental and safety problems are driving a significant shift away from conventional mineral oil. The market is rapidly adopting oil immersed transformers loaded with naturally degradable esters (artificial or all-natural). These oils provide a greater fire point (making them K-class fireproof), are less hazardous, and are conveniently naturally degradable, substantially decreasing the ecological impact in situation of a leakage. This pattern is making oil immersed distribution transformers more secure for installation in city areas and environmentally delicate places.
3.2 Combination with Smart Grids and IoT
The contemporary oil engaged power transformer is becoming a smart node in the wise grid. Sensors are being integrated to keep track of essential specifications in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Spotting fault gases created within the oil to forecast incipient faults.
Temperature Surveillance: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Monitoring.
This data, sent by means of IoT (Web of Points) platforms, makes it possible for predictive maintenance, prevents unintended blackouts, and optimizes transformer utilization and life-span.
3.3 Sustaining the Renewable Energy Transition
The worldwide promote renewables is creating brand-new need for oil immersed transformers. Large-scale solar farms and wind power installments need robust oil immersed power transformers to step up the produced voltage to transmission levels. Additionally, the periodic nature of renewables areas greater tension on grid elements, and the proven dependability and overload ability of oil submersed transformers make them perfect for this critical role.
4. Option and Maintenance Best Practices
Picking the ideal transformer and keeping it properly is key to a trustworthy power system.
4.1 Exactly how to Select the Right Oil Immersed Transformer
Choosing between an oil submersed power transformer and an oil submersed circulation transformer depends upon the application. Key considerations include:
1. Voltage Degree and kVA Score: Suit the transformer’s specifications to your system’s requirements.
2. Application: Transmission substation, plant, or industrial distribution.
3. Area: Indoor vs. outside, environmental problems, and fire security guidelines (which might influence the choice of protecting oil).
4. Performance Standards: Abide by local effectiveness requirements like DOE (United States) or EU CoC (Europe).
5. Budget: Take into consideration both the preliminary funding price and the total price of possession, consisting of losses.
(Oil immersed distribution transformer)
4.2 Important Upkeep for Longevity
Aggressive upkeep is important for any kind of oil immersed transformer. An extensive program needs to consist of:
1. Routine Oil Sampling and Screening: Regular DGA and testing of dielectric strength and moisture material are one of the most efficient methods to assess the health of the transformer.
2. Bushing and Insulation Inspection: Aesthetic look for fractures, contamination, or leakages.
3. Faucet Changer Upkeep: Normal evaluation and servicing of on-load or off-load tap changers.
4. Maintain it Tidy and Dry: Ensuring the container exterior, radiators, and rests are clean and useful.
The oil immersed transformer, in its duties as both a high-capacity oil submersed power transformer and a common oil immersed distribution transformer, stays an irreplaceable part of our worldwide energy framework. Its tested design, combined with continuous developments in shielding liquids and digital tracking, guarantees it will certainly continue to be a trusted, effective, and smart service for powering our world for years ahead. As we construct the grids of the future, integrating even more renewables and digital knowledge, the robust and versatile oil immersed transformer will most certainly go to the heart of it.
