1. Principles of Silica Sol Chemistry and Colloidal Security
1.1 Structure and Fragment Morphology
(Silica Sol)

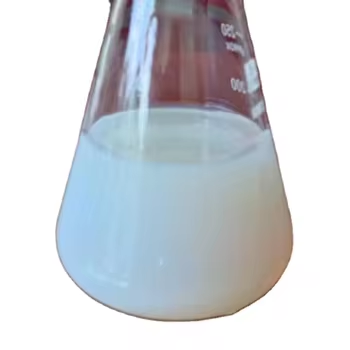

Silica sol is a stable colloidal dispersion including amorphous silicon dioxide (SiO â‚‚) nanoparticles, normally varying from 5 to 100 nanometers in size, put on hold in a fluid phase– most typically water.
These nanoparticles are made up of a three-dimensional network of SiO four tetrahedra, forming a permeable and extremely responsive surface rich in silanol (Si– OH) groups that control interfacial habits.
The sol state is thermodynamically metastable, kept by electrostatic repulsion in between charged particles; surface area charge occurs from the ionization of silanol groups, which deprotonate over pH ~ 2– 3, generating negatively billed particles that drive away one another.
Bit form is usually round, though synthesis conditions can affect gathering tendencies and short-range getting.
The high surface-area-to-volume ratio– usually exceeding 100 m TWO/ g– makes silica sol incredibly responsive, allowing solid interactions with polymers, steels, and organic molecules.
1.2 Stabilization Devices and Gelation Change
Colloidal security in silica sol is mostly governed by the balance in between van der Waals attractive forces and electrostatic repulsion, defined by the DLVO (Derjaguin– Landau– Verwey– Overbeek) concept.
At low ionic toughness and pH values over the isoelectric factor (~ pH 2), the zeta capacity of fragments is sufficiently adverse to prevent aggregation.
Nevertheless, enhancement of electrolytes, pH modification toward nonpartisanship, or solvent evaporation can evaluate surface area costs, minimize repulsion, and activate particle coalescence, leading to gelation.
Gelation involves the development of a three-dimensional network through siloxane (Si– O– Si) bond development in between adjacent bits, changing the fluid sol into an inflexible, permeable xerogel upon drying out.
This sol-gel change is relatively easy to fix in some systems however commonly leads to permanent structural adjustments, forming the basis for sophisticated ceramic and composite construction.
2. Synthesis Pathways and Process Control
( Silica Sol)
2.1 Stöber Technique and Controlled Growth
One of the most extensively acknowledged method for creating monodisperse silica sol is the Sțber process, developed in 1968, which entails the hydrolysis and condensation of alkoxysilanesРnormally tetraethyl orthosilicate (TEOS)Рin an alcoholic medium with liquid ammonia as a catalyst.
By precisely managing specifications such as water-to-TEOS ratio, ammonia focus, solvent composition, and response temperature level, particle size can be tuned reproducibly from ~ 10 nm to over 1 µm with narrow size distribution.
The device proceeds using nucleation followed by diffusion-limited development, where silanol teams condense to create siloxane bonds, accumulating the silica structure.
This technique is ideal for applications requiring consistent round bits, such as chromatographic assistances, calibration standards, and photonic crystals.
2.2 Acid-Catalyzed and Biological Synthesis Routes
Alternate synthesis methods consist of acid-catalyzed hydrolysis, which favors straight condensation and causes more polydisperse or aggregated fragments, commonly made use of in commercial binders and layers.
Acidic problems (pH 1– 3) promote slower hydrolysis yet faster condensation in between protonated silanols, resulting in irregular or chain-like structures.
More lately, bio-inspired and eco-friendly synthesis methods have actually arised, making use of silicatein enzymes or plant essences to precipitate silica under ambient problems, reducing energy intake and chemical waste.
These sustainable approaches are acquiring interest for biomedical and ecological applications where pureness and biocompatibility are vital.
Furthermore, industrial-grade silica sol is frequently produced through ion-exchange processes from sodium silicate remedies, complied with by electrodialysis to get rid of alkali ions and stabilize the colloid.
3. Practical Residences and Interfacial Behavior
3.1 Surface Area Sensitivity and Adjustment Methods
The surface area of silica nanoparticles in sol is dominated by silanol groups, which can take part in hydrogen bonding, adsorption, and covalent grafting with organosilanes.
Surface adjustment using combining agents such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane presents useful groups (e.g.,– NH TWO,– CH FOUR) that change hydrophilicity, sensitivity, and compatibility with organic matrices.
These alterations make it possible for silica sol to serve as a compatibilizer in hybrid organic-inorganic compounds, boosting dispersion in polymers and boosting mechanical, thermal, or barrier residential or commercial properties.
Unmodified silica sol shows strong hydrophilicity, making it perfect for liquid systems, while changed variations can be spread in nonpolar solvents for specialized finishings and inks.
3.2 Rheological and Optical Characteristics
Silica sol diffusions commonly display Newtonian flow actions at reduced concentrations, yet viscosity increases with particle loading and can shift to shear-thinning under high solids web content or partial aggregation.
This rheological tunability is manipulated in finishes, where controlled circulation and progressing are essential for consistent film development.
Optically, silica sol is transparent in the visible spectrum due to the sub-wavelength dimension of particles, which minimizes light scattering.
This openness enables its use in clear finishes, anti-reflective films, and optical adhesives without compromising visual clarity.
When dried out, the resulting silica movie keeps transparency while supplying solidity, abrasion resistance, and thermal security approximately ~ 600 ° C.
4. Industrial and Advanced Applications
4.1 Coatings, Composites, and Ceramics
Silica sol is extensively used in surface area coatings for paper, fabrics, metals, and building and construction materials to improve water resistance, scrape resistance, and resilience.
In paper sizing, it enhances printability and wetness obstacle residential or commercial properties; in foundry binders, it replaces organic resins with eco-friendly not natural choices that decay cleanly throughout casting.
As a forerunner for silica glass and porcelains, silica sol makes it possible for low-temperature construction of thick, high-purity parts via sol-gel handling, staying clear of the high melting factor of quartz.
It is likewise used in investment casting, where it forms strong, refractory mold and mildews with great surface area finish.
4.2 Biomedical, Catalytic, and Energy Applications
In biomedicine, silica sol acts as a system for drug distribution systems, biosensors, and analysis imaging, where surface functionalization enables targeted binding and regulated launch.
Mesoporous silica nanoparticles (MSNs), stemmed from templated silica sol, offer high packing capacity and stimuli-responsive release mechanisms.
As a driver support, silica sol offers a high-surface-area matrix for paralyzing metal nanoparticles (e.g., Pt, Au, Pd), enhancing dispersion and catalytic effectiveness in chemical transformations.
In power, silica sol is made use of in battery separators to enhance thermal security, in gas cell membranes to enhance proton conductivity, and in photovoltaic panel encapsulants to secure against wetness and mechanical anxiety.
In recap, silica sol stands for a fundamental nanomaterial that links molecular chemistry and macroscopic capability.
Its controllable synthesis, tunable surface chemistry, and versatile processing enable transformative applications throughout sectors, from sustainable production to innovative medical care and energy systems.
As nanotechnology advances, silica sol continues to function as a design system for developing wise, multifunctional colloidal materials.
