1. Basic Principles and Process Categories
1.1 Meaning and Core System

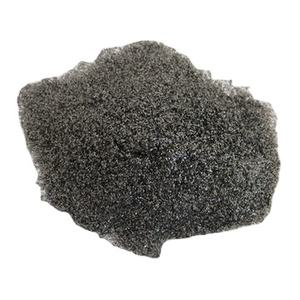

(3d printing alloy powder)
Metal 3D printing, also called metal additive production (AM), is a layer-by-layer manufacture method that builds three-dimensional metal parts directly from digital versions making use of powdered or cable feedstock.
Unlike subtractive methods such as milling or turning, which get rid of material to attain form, steel AM includes product only where required, making it possible for unmatched geometric complexity with very little waste.
The process begins with a 3D CAD version cut right into thin horizontal layers (usually 20– 100 µm thick). A high-energy resource– laser or electron beam– precisely melts or merges metal particles according per layer’s cross-section, which solidifies upon cooling down to form a thick strong.
This cycle repeats until the full component is created, commonly within an inert environment (argon or nitrogen) to prevent oxidation of reactive alloys like titanium or aluminum.
The resulting microstructure, mechanical homes, and surface finish are governed by thermal background, check strategy, and material qualities, needing exact control of process specifications.
1.2 Significant Metal AM Technologies
Both leading powder-bed blend (PBF) modern technologies are Careful Laser Melting (SLM) and Electron Beam Melting (EBM).
SLM utilizes a high-power fiber laser (usually 200– 1000 W) to completely thaw steel powder in an argon-filled chamber, creating near-full thickness (> 99.5%) parts with great feature resolution and smooth surfaces.
EBM employs a high-voltage electron light beam in a vacuum atmosphere, running at greater develop temperature levels (600– 1000 ° C), which reduces residual tension and allows crack-resistant handling of fragile alloys like Ti-6Al-4V or Inconel 718.
Past PBF, Directed Energy Deposition (DED)– consisting of Laser Steel Deposition (LMD) and Wire Arc Additive Production (WAAM)– feeds steel powder or cord into a liquified swimming pool developed by a laser, plasma, or electric arc, suitable for large repair services or near-net-shape elements.
Binder Jetting, however less mature for steels, includes transferring a liquid binding representative onto steel powder layers, followed by sintering in a furnace; it provides high speed however lower thickness and dimensional accuracy.
Each innovation stabilizes compromises in resolution, build price, product compatibility, and post-processing requirements, directing option based on application needs.
2. Materials and Metallurgical Considerations
2.1 Usual Alloys and Their Applications
Steel 3D printing supports a vast array of engineering alloys, consisting of stainless-steels (e.g., 316L, 17-4PH), tool steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).
Stainless steels supply rust resistance and modest stamina for fluidic manifolds and clinical tools.
(3d printing alloy powder)
Nickel superalloys excel in high-temperature environments such as turbine blades and rocket nozzles because of their creep resistance and oxidation stability.
Titanium alloys incorporate high strength-to-density ratios with biocompatibility, making them optimal for aerospace braces and orthopedic implants.
Light weight aluminum alloys enable lightweight structural parts in automobile and drone applications, though their high reflectivity and thermal conductivity present obstacles for laser absorption and melt pool security.
Product growth proceeds with high-entropy alloys (HEAs) and functionally rated structures that transition homes within a solitary part.
2.2 Microstructure and Post-Processing Needs
The fast home heating and cooling cycles in metal AM generate unique microstructures– commonly great cellular dendrites or columnar grains straightened with warmth flow– that differ substantially from cast or wrought counterparts.
While this can boost toughness through grain improvement, it may additionally present anisotropy, porosity, or recurring stress and anxieties that compromise exhaustion performance.
As a result, almost all steel AM parts require post-processing: tension relief annealing to reduce distortion, warm isostatic pressing (HIP) to shut inner pores, machining for vital resistances, and surface area completing (e.g., electropolishing, shot peening) to improve exhaustion life.
Heat therapies are customized to alloy systems– for instance, solution aging for 17-4PH to attain rainfall hardening, or beta annealing for Ti-6Al-4V to optimize ductility.
Quality control depends on non-destructive screening (NDT) such as X-ray computed tomography (CT) and ultrasonic evaluation to discover internal problems invisible to the eye.
3. Style Liberty and Industrial Impact
3.1 Geometric Innovation and Functional Combination
Metal 3D printing unlocks layout standards impossible with conventional production, such as internal conformal cooling networks in shot mold and mildews, latticework structures for weight reduction, and topology-optimized load courses that reduce material usage.
Parts that when required assembly from dozens of elements can currently be printed as monolithic devices, decreasing joints, bolts, and prospective failing points.
This functional combination boosts reliability in aerospace and medical tools while reducing supply chain intricacy and inventory expenses.
Generative design algorithms, combined with simulation-driven optimization, immediately produce natural forms that fulfill performance targets under real-world tons, pressing the limits of performance.
Personalization at scale becomes feasible– dental crowns, patient-specific implants, and bespoke aerospace fittings can be generated financially without retooling.
3.2 Sector-Specific Adoption and Economic Worth
Aerospace leads fostering, with business like GE Aeronautics printing fuel nozzles for jump engines– combining 20 components right into one, lowering weight by 25%, and enhancing resilience fivefold.
Medical gadget manufacturers leverage AM for porous hip stems that encourage bone ingrowth and cranial plates matching individual makeup from CT scans.
Automotive companies use steel AM for fast prototyping, light-weight braces, and high-performance racing components where efficiency outweighs cost.
Tooling sectors take advantage of conformally cooled mold and mildews that reduced cycle times by approximately 70%, boosting efficiency in automation.
While machine costs stay high (200k– 2M), declining prices, improved throughput, and accredited product databases are broadening ease of access to mid-sized ventures and service bureaus.
4. Obstacles and Future Directions
4.1 Technical and Accreditation Barriers
Despite progress, steel AM deals with obstacles in repeatability, certification, and standardization.
Small variants in powder chemistry, moisture material, or laser emphasis can change mechanical residential or commercial properties, requiring rigorous procedure control and in-situ monitoring (e.g., melt pool cameras, acoustic sensing units).
Qualification for safety-critical applications– especially in air travel and nuclear sectors– requires extensive statistical recognition under frameworks like ASTM F42, ISO/ASTM 52900, and NADCAP, which is time-consuming and expensive.
Powder reuse procedures, contamination risks, and absence of global product requirements additionally complicate industrial scaling.
Initiatives are underway to establish electronic twins that connect process parameters to component efficiency, allowing predictive quality control and traceability.
4.2 Emerging Trends and Next-Generation Systems
Future improvements include multi-laser systems (4– 12 lasers) that significantly boost construct prices, crossbreed makers integrating AM with CNC machining in one platform, and in-situ alloying for custom structures.
Expert system is being integrated for real-time defect detection and adaptive parameter correction during printing.
Sustainable efforts concentrate on closed-loop powder recycling, energy-efficient beam sources, and life cycle evaluations to measure ecological benefits over traditional techniques.
Study right into ultrafast lasers, cold spray AM, and magnetic field-assisted printing might get rid of present restrictions in reflectivity, recurring anxiety, and grain orientation control.
As these developments mature, metal 3D printing will transition from a niche prototyping tool to a mainstream manufacturing technique– reshaping exactly how high-value metal parts are created, made, and released across industries.
5. Provider
TRUNNANO is a supplier of Spherical Tungsten Powder with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Spherical Tungsten Powder, please feel free to contact us and send an inquiry.
