1. Material Characteristics and Structural Stability
1.1 Intrinsic Characteristics of Silicon Carbide

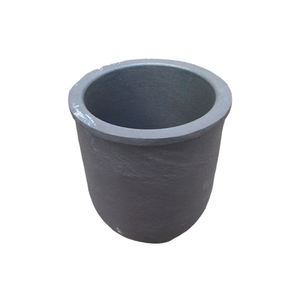

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms prepared in a tetrahedral lattice structure, mostly existing in over 250 polytypic forms, with 6H, 4H, and 3C being one of the most highly relevant.
Its solid directional bonding imparts remarkable hardness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure solitary crystals), and impressive chemical inertness, making it one of the most durable materials for severe atmospheres.
The broad bandgap (2.9– 3.3 eV) makes sure outstanding electrical insulation at space temperature level and high resistance to radiation damages, while its low thermal expansion coefficient (~ 4.0 × 10 ⁻⁶/ K) contributes to superior thermal shock resistance.
These innate homes are protected also at temperatures exceeding 1600 ° C, allowing SiC to maintain architectural honesty under long term direct exposure to molten steels, slags, and responsive gases.
Unlike oxide porcelains such as alumina, SiC does not respond conveniently with carbon or kind low-melting eutectics in minimizing atmospheres, a crucial advantage in metallurgical and semiconductor handling.
When made into crucibles– vessels created to have and heat materials– SiC outperforms standard products like quartz, graphite, and alumina in both life expectancy and process integrity.
1.2 Microstructure and Mechanical Security
The efficiency of SiC crucibles is very closely linked to their microstructure, which depends on the manufacturing method and sintering additives utilized.
Refractory-grade crucibles are usually produced via reaction bonding, where porous carbon preforms are infiltrated with molten silicon, creating β-SiC via the reaction Si(l) + C(s) → SiC(s).
This procedure yields a composite framework of key SiC with recurring totally free silicon (5– 10%), which enhances thermal conductivity yet may limit use above 1414 ° C(the melting point of silicon).
Additionally, fully sintered SiC crucibles are made through solid-state or liquid-phase sintering utilizing boron and carbon or alumina-yttria ingredients, attaining near-theoretical density and greater pureness.
These display remarkable creep resistance and oxidation stability but are extra expensive and difficult to fabricate in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC provides superb resistance to thermal tiredness and mechanical disintegration, important when dealing with liquified silicon, germanium, or III-V compounds in crystal development procedures.
Grain border design, consisting of the control of additional stages and porosity, plays an important function in determining long-lasting toughness under cyclic heating and hostile chemical settings.
2. Thermal Performance and Environmental Resistance
2.1 Thermal Conductivity and Warm Distribution
One of the specifying advantages of SiC crucibles is their high thermal conductivity, which enables rapid and uniform warmth transfer during high-temperature processing.
In contrast to low-conductivity products like merged silica (1– 2 W/(m · K)), SiC effectively distributes thermal energy throughout the crucible wall surface, lessening local hot spots and thermal slopes.
This uniformity is essential in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity straight impacts crystal quality and flaw density.
The combination of high conductivity and low thermal growth results in an extremely high thermal shock parameter (R = k(1 − ν)α/ σ), making SiC crucibles immune to fracturing throughout quick home heating or cooling cycles.
This permits faster heater ramp rates, boosted throughput, and lowered downtime due to crucible failure.
Furthermore, the material’s ability to hold up against duplicated thermal cycling without significant destruction makes it perfect for batch handling in industrial furnaces operating above 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At raised temperatures in air, SiC undergoes easy oxidation, forming a safety layer of amorphous silica (SiO TWO) on its surface: SiC + 3/2 O ₂ → SiO TWO + CO.
This lustrous layer densifies at heats, acting as a diffusion obstacle that reduces further oxidation and preserves the underlying ceramic framework.
Nonetheless, in minimizing atmospheres or vacuum cleaner problems– usual in semiconductor and metal refining– oxidation is subdued, and SiC continues to be chemically stable against molten silicon, light weight aluminum, and many slags.
It stands up to dissolution and reaction with liquified silicon up to 1410 ° C, although long term exposure can cause mild carbon pickup or user interface roughening.
Most importantly, SiC does not present metallic contaminations into delicate thaws, a crucial requirement for electronic-grade silicon manufacturing where contamination by Fe, Cu, or Cr should be kept listed below ppb levels.
Nonetheless, care must be taken when refining alkaline earth metals or very responsive oxides, as some can corrode SiC at severe temperatures.
3. Manufacturing Processes and Quality Control
3.1 Manufacture Strategies and Dimensional Control
The production of SiC crucibles involves shaping, drying, and high-temperature sintering or infiltration, with techniques selected based upon required purity, size, and application.
Usual forming strategies consist of isostatic pushing, extrusion, and slide spreading, each supplying different degrees of dimensional accuracy and microstructural uniformity.
For big crucibles used in photovoltaic or pv ingot casting, isostatic pressing guarantees consistent wall surface thickness and density, minimizing the risk of crooked thermal expansion and failure.
Reaction-bonded SiC (RBSC) crucibles are cost-efficient and widely used in foundries and solar markets, though residual silicon restrictions optimal solution temperature.
Sintered SiC (SSiC) variations, while more pricey, deal superior pureness, strength, and resistance to chemical attack, making them suitable for high-value applications like GaAs or InP crystal development.
Accuracy machining after sintering might be required to achieve tight tolerances, especially for crucibles used in upright slope freeze (VGF) or Czochralski (CZ) systems.
Surface finishing is crucial to lessen nucleation sites for problems and make certain smooth melt circulation during casting.
3.2 Quality Control and Efficiency Recognition
Extensive quality control is important to make sure integrity and durability of SiC crucibles under requiring operational problems.
Non-destructive analysis methods such as ultrasonic testing and X-ray tomography are utilized to discover inner cracks, spaces, or density variations.
Chemical analysis via XRF or ICP-MS confirms reduced levels of metallic contaminations, while thermal conductivity and flexural toughness are measured to validate product consistency.
Crucibles are commonly based on substitute thermal cycling examinations prior to shipment to determine potential failure modes.
Set traceability and accreditation are common in semiconductor and aerospace supply chains, where element failing can lead to costly production losses.
4. Applications and Technological Effect
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play an essential function in the production of high-purity silicon for both microelectronics and solar cells.
In directional solidification heaters for multicrystalline solar ingots, big SiC crucibles act as the key container for liquified silicon, withstanding temperatures above 1500 ° C for several cycles.
Their chemical inertness avoids contamination, while their thermal stability ensures consistent solidification fronts, resulting in higher-quality wafers with less dislocations and grain boundaries.
Some manufacturers coat the internal surface area with silicon nitride or silica to even more reduce bond and promote ingot release after cooling.
In research-scale Czochralski growth of substance semiconductors, smaller sized SiC crucibles are used to hold melts of GaAs, InSb, or CdTe, where marginal reactivity and dimensional security are paramount.
4.2 Metallurgy, Foundry, and Emerging Technologies
Beyond semiconductors, SiC crucibles are vital in steel refining, alloy preparation, and laboratory-scale melting procedures involving light weight aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and erosion makes them perfect for induction and resistance heaters in factories, where they outlast graphite and alumina alternatives by several cycles.
In additive manufacturing of responsive steels, SiC containers are utilized in vacuum induction melting to stop crucible failure and contamination.
Emerging applications include molten salt reactors and concentrated solar power systems, where SiC vessels may consist of high-temperature salts or liquid metals for thermal power storage space.
With recurring developments in sintering technology and layer design, SiC crucibles are poised to sustain next-generation products handling, enabling cleaner, a lot more reliable, and scalable industrial thermal systems.
In recap, silicon carbide crucibles represent a vital enabling innovation in high-temperature material synthesis, integrating remarkable thermal, mechanical, and chemical performance in a single engineered element.
Their extensive fostering across semiconductor, solar, and metallurgical markets underscores their duty as a keystone of modern-day commercial ceramics.
