1. Make-up and Architectural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Stability

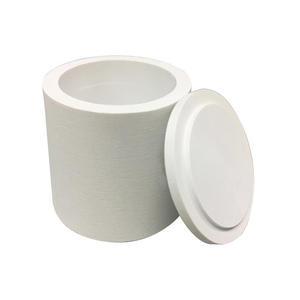

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from fused silica, a synthetic type of silicon dioxide (SiO ₂) originated from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under quick temperature level adjustments.
This disordered atomic framework avoids cleavage along crystallographic airplanes, making fused silica less susceptible to splitting throughout thermal biking compared to polycrystalline porcelains.
The material displays a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), among the lowest amongst engineering products, enabling it to withstand extreme thermal slopes without fracturing– a crucial building in semiconductor and solar battery manufacturing.
Merged silica also preserves exceptional chemical inertness against the majority of acids, molten steels, and slags, although it can be slowly engraved by hydrofluoric acid and hot phosphoric acid.
Its high conditioning factor (~ 1600– 1730 ° C, depending upon pureness and OH material) allows continual procedure at elevated temperature levels needed for crystal growth and metal refining procedures.
1.2 Pureness Grading and Micronutrient Control
The performance of quartz crucibles is extremely based on chemical pureness, particularly the focus of metal impurities such as iron, salt, potassium, aluminum, and titanium.
Even trace amounts (parts per million degree) of these contaminants can migrate into molten silicon throughout crystal growth, weakening the electric buildings of the resulting semiconductor material.
High-purity qualities made use of in electronic devices producing commonly have over 99.95% SiO ₂, with alkali metal oxides restricted to less than 10 ppm and shift metals listed below 1 ppm.
Impurities stem from raw quartz feedstock or handling tools and are decreased through careful option of mineral resources and purification methods like acid leaching and flotation protection.
Additionally, the hydroxyl (OH) material in integrated silica affects its thermomechanical habits; high-OH types supply better UV transmission but lower thermal security, while low-OH variants are favored for high-temperature applications due to minimized bubble development.
( Quartz Crucibles)
2. Production Process and Microstructural Design
2.1 Electrofusion and Forming Techniques
Quartz crucibles are largely created using electrofusion, a procedure in which high-purity quartz powder is fed right into a turning graphite mold and mildew within an electrical arc heater.
An electrical arc produced in between carbon electrodes thaws the quartz bits, which strengthen layer by layer to develop a seamless, dense crucible shape.
This method generates a fine-grained, uniform microstructure with minimal bubbles and striae, crucial for uniform warm distribution and mechanical integrity.
Alternate approaches such as plasma fusion and flame fusion are made use of for specialized applications needing ultra-low contamination or particular wall thickness accounts.
After casting, the crucibles undergo regulated cooling (annealing) to ease inner stresses and avoid spontaneous cracking throughout service.
Surface area ending up, including grinding and polishing, makes certain dimensional precision and lowers nucleation sites for unwanted formation during use.
2.2 Crystalline Layer Design and Opacity Control
A specifying function of modern-day quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer framework.
Throughout production, the internal surface area is typically dealt with to promote the development of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first home heating.
This cristobalite layer acts as a diffusion obstacle, lowering direct communication between liquified silicon and the underlying integrated silica, therefore decreasing oxygen and metal contamination.
Moreover, the presence of this crystalline stage enhances opacity, improving infrared radiation absorption and promoting even more consistent temperature distribution within the thaw.
Crucible designers meticulously balance the density and continuity of this layer to avoid spalling or breaking as a result of quantity changes during phase shifts.
3. Functional Efficiency in High-Temperature Applications
3.1 Duty in Silicon Crystal Growth Processes
Quartz crucibles are important in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the key container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into liquified silicon held in a quartz crucible and slowly pulled up while turning, allowing single-crystal ingots to develop.
Although the crucible does not directly contact the growing crystal, interactions between liquified silicon and SiO ₂ wall surfaces result in oxygen dissolution right into the thaw, which can affect carrier life time and mechanical stamina in completed wafers.
In DS processes for photovoltaic-grade silicon, massive quartz crucibles make it possible for the regulated cooling of countless kgs of molten silicon right into block-shaped ingots.
Below, finishes such as silicon nitride (Si two N FOUR) are related to the internal surface area to stop adhesion and facilitate very easy launch of the strengthened silicon block after cooling down.
3.2 Degradation Devices and Service Life Limitations
Despite their effectiveness, quartz crucibles break down throughout repeated high-temperature cycles as a result of numerous related mechanisms.
Viscous flow or deformation happens at prolonged exposure over 1400 ° C, resulting in wall thinning and loss of geometric honesty.
Re-crystallization of merged silica right into cristobalite produces inner tensions as a result of quantity growth, potentially causing cracks or spallation that infect the melt.
Chemical disintegration occurs from decrease responses in between liquified silicon and SiO TWO: SiO TWO + Si → 2SiO(g), generating volatile silicon monoxide that escapes and compromises the crucible wall surface.
Bubble development, driven by caught gases or OH groups, better endangers structural toughness and thermal conductivity.
These destruction pathways restrict the variety of reuse cycles and necessitate exact procedure control to take full advantage of crucible lifespan and product return.
4. Arising Advancements and Technological Adaptations
4.1 Coatings and Compound Adjustments
To improve efficiency and sturdiness, advanced quartz crucibles integrate practical layers and composite frameworks.
Silicon-based anti-sticking layers and drugged silica coatings enhance release attributes and minimize oxygen outgassing during melting.
Some makers integrate zirconia (ZrO TWO) particles right into the crucible wall to enhance mechanical strength and resistance to devitrification.
Research study is continuous into totally transparent or gradient-structured crucibles made to enhance convected heat transfer in next-generation solar furnace styles.
4.2 Sustainability and Recycling Difficulties
With raising need from the semiconductor and solar industries, sustainable use quartz crucibles has actually ended up being a priority.
Spent crucibles contaminated with silicon deposit are challenging to reuse because of cross-contamination dangers, resulting in considerable waste generation.
Efforts concentrate on establishing reusable crucible liners, improved cleansing protocols, and closed-loop recycling systems to recover high-purity silica for secondary applications.
As tool performances demand ever-higher material purity, the function of quartz crucibles will certainly remain to advance through technology in products science and procedure design.
In recap, quartz crucibles represent a critical user interface in between basic materials and high-performance digital products.
Their unique combination of purity, thermal durability, and architectural layout makes it possible for the construction of silicon-based modern technologies that power modern computing and renewable resource systems.
