Introduction: Key devices in power electronics
Silicon-controlled rectifiers (SCRs), likewise called thyristors, are semiconductor power devices with a four-layer three-way junction structure (PNPN). Because its introduction in the 1950s, SCRs have actually been extensively used in industrial automation, power systems, home device control and various other areas due to their high endure voltage, large present bring ability, rapid action and basic control. With the advancement of technology, SCRs have developed right into several kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions in between these types are not just shown in the structure and working concept, yet additionally identify their applicability in various application situations. This article will start from a technological viewpoint, incorporated with details specifications, to deeply evaluate the primary distinctions and normal uses of these 4 SCRs.
Unidirectional SCR: Fundamental and steady application core
Unidirectional SCR is one of the most basic and common type of thyristor. Its framework is a four-layer three-junction PNPN plan, including three electrodes: anode (A), cathode (K) and gateway (G). It only permits current to flow in one instructions (from anode to cathode) and switches on after eviction is set off. Once turned on, even if eviction signal is removed, as long as the anode current is greater than the holding current (typically much less than 100mA), the SCR remains on.

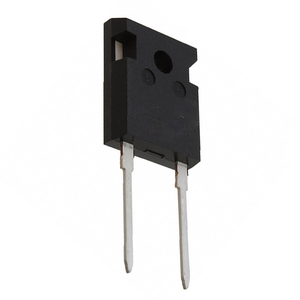

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and existing tolerance, with a forward repetitive optimal voltage (V DRM) of approximately 6500V and a ranked on-state average current (ITAV) of as much as 5000A. Therefore, it is extensively made use of in DC motor control, commercial furnace, uninterruptible power supply (UPS) rectification components, power conditioning tools and various other occasions that need constant conduction and high power processing. Its benefits are easy structure, inexpensive and high dependability, and it is a core element of several typical power control systems.
Bidirectional SCR (TRIAC): Ideal for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, also referred to as TRIAC, can accomplish bidirectional transmission in both positive and unfavorable half cycles. This structure includes two anti-parallel SCRs, which allow TRIAC to be set off and activated any time in the a/c cycle without altering the circuit connection method. The in proportion conduction voltage series of TRIAC is normally ± 400 ~ 800V, the maximum load current has to do with 100A, and the trigger current is less than 50mA.
Because of the bidirectional transmission features of TRIAC, it is especially suitable for air conditioning dimming and rate control in house devices and consumer electronic devices. As an example, devices such as light dimmers, follower controllers, and air conditioning system fan speed regulatory authorities all rely on TRIAC to achieve smooth power policy. On top of that, TRIAC also has a lower driving power demand and is suitable for integrated style, so it has actually been extensively made use of in clever home systems and little home appliances. Although the power density and changing speed of TRIAC are not like those of new power tools, its low cost and practical usage make it a vital gamer in the area of small and medium power air conditioning control.
Gate Turn-Off Thyristor (GTO): A high-performance representative of active control
Gate Turn-Off Thyristor (GTO) is a high-performance power tool established on the basis of typical SCR. Unlike ordinary SCR, which can just be shut off passively, GTO can be switched off proactively by using a negative pulse present to the gate, hence accomplishing even more flexible control. This feature makes GTO do well in systems that call for regular start-stop or fast feedback.

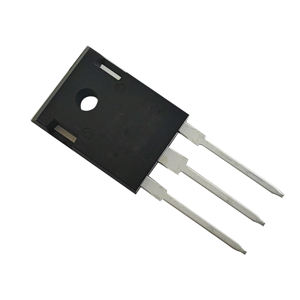

(Thyristor Rectifier)
The technological parameters of GTO reveal that it has very high power dealing with capacity: the turn-off gain is about 4 ~ 5, the maximum operating voltage can get to 6000V, and the maximum operating current is up to 6000A. The turn-on time has to do with 1μs, and the turn-off time is 2 ~ 5μs. These performance indications make GTO widely utilized in high-power circumstances such as electrical locomotive grip systems, huge inverters, industrial electric motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably complex and has high switching losses, its performance under high power and high vibrant feedback needs is still irreplaceable.
Light-controlled thyristor (LTT): A trusted selection in the high-voltage isolation setting
Light-controlled thyristor (LTT) uses optical signals instead of electrical signals to activate conduction, which is its largest feature that differentiates it from various other sorts of SCRs. The optical trigger wavelength of LTT is normally in between 850nm and 950nm, the action time is measured in nanoseconds, and the insulation level can be as high as 100kV or over. This optoelectronic isolation mechanism considerably boosts the system’s anti-electromagnetic interference capacity and security.
LTT is primarily used in ultra-high voltage direct current transmission (UHVDC), power system relay security gadgets, electro-magnetic compatibility defense in clinical devices, and armed forces radar communication systems and so on, which have incredibly high requirements for security and security. For example, several converter stations in China’s “West-to-East Power Transmission” job have adopted LTT-based converter valve modules to ensure stable operation under incredibly high voltage conditions. Some progressed LTTs can likewise be integrated with gate control to attain bidirectional conduction or turn-off functions, even more increasing their application variety and making them an excellent choice for solving high-voltage and high-current control problems.
