1. Material Principles and Architectural Properties of Alumina Ceramics
1.1 Structure, Crystallography, and Stage Security

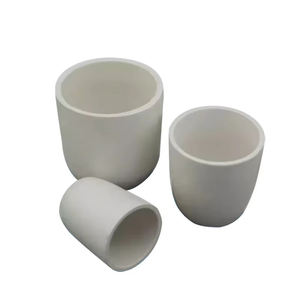

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels fabricated largely from aluminum oxide (Al two O ₃), among one of the most widely used sophisticated ceramics due to its extraordinary combination of thermal, mechanical, and chemical security.
The dominant crystalline stage in these crucibles is alpha-alumina (α-Al two O FIVE), which belongs to the corundum structure– a hexagonal close-packed plan of oxygen ions with two-thirds of the octahedral interstices occupied by trivalent aluminum ions.
This thick atomic packing results in solid ionic and covalent bonding, conferring high melting point (2072 ° C), outstanding solidity (9 on the Mohs range), and resistance to sneak and contortion at raised temperatures.
While pure alumina is suitable for most applications, trace dopants such as magnesium oxide (MgO) are commonly included throughout sintering to inhibit grain growth and improve microstructural harmony, thus enhancing mechanical stamina and thermal shock resistance.
The phase pureness of α-Al two O six is crucial; transitional alumina phases (e.g., γ, δ, θ) that create at reduced temperatures are metastable and go through quantity modifications upon conversion to alpha phase, potentially bring about fracturing or failing under thermal cycling.
1.2 Microstructure and Porosity Control in Crucible Manufacture
The efficiency of an alumina crucible is profoundly influenced by its microstructure, which is identified during powder processing, developing, and sintering stages.
High-purity alumina powders (normally 99.5% to 99.99% Al Two O FOUR) are formed right into crucible types making use of techniques such as uniaxial pressing, isostatic pressing, or slide casting, complied with by sintering at temperature levels in between 1500 ° C and 1700 ° C.
During sintering, diffusion systems drive fragment coalescence, lowering porosity and increasing density– preferably achieving > 99% academic density to lessen leaks in the structure and chemical seepage.
Fine-grained microstructures boost mechanical stamina and resistance to thermal stress and anxiety, while controlled porosity (in some specific qualities) can enhance thermal shock resistance by dissipating strain power.
Surface coating is additionally crucial: a smooth indoor surface area decreases nucleation websites for undesirable responses and helps with easy removal of strengthened products after handling.
Crucible geometry– consisting of wall surface density, curvature, and base style– is enhanced to stabilize warmth transfer effectiveness, architectural stability, and resistance to thermal gradients during rapid heating or air conditioning.

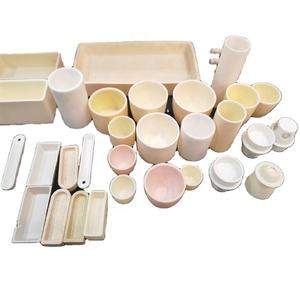

( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Efficiency and Thermal Shock Behavior
Alumina crucibles are consistently employed in environments going beyond 1600 ° C, making them important in high-temperature materials research, metal refining, and crystal growth processes.
They display low thermal conductivity (~ 30 W/m · K), which, while restricting warmth transfer rates, likewise supplies a degree of thermal insulation and helps keep temperature gradients needed for directional solidification or zone melting.
A vital challenge is thermal shock resistance– the ability to endure abrupt temperature modifications without splitting.
Although alumina has a relatively reduced coefficient of thermal expansion (~ 8 × 10 ⁻⁶/ K), its high stiffness and brittleness make it susceptible to crack when based on high thermal slopes, specifically during quick home heating or quenching.
To alleviate this, individuals are suggested to comply with controlled ramping procedures, preheat crucibles progressively, and stay clear of straight exposure to open flames or chilly surfaces.
Advanced qualities incorporate zirconia (ZrO TWO) strengthening or graded structures to enhance fracture resistance through mechanisms such as phase improvement toughening or residual compressive stress generation.
2.2 Chemical Inertness and Compatibility with Reactive Melts
One of the specifying advantages of alumina crucibles is their chemical inertness toward a vast array of molten metals, oxides, and salts.
They are extremely resistant to fundamental slags, molten glasses, and many metal alloys, including iron, nickel, cobalt, and their oxides, that makes them appropriate for use in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.
However, they are not universally inert: alumina responds with highly acidic fluxes such as phosphoric acid or boron trioxide at heats, and it can be worn away by molten alkalis like sodium hydroxide or potassium carbonate.
Particularly crucial is their communication with light weight aluminum steel and aluminum-rich alloys, which can decrease Al ₂ O five via the reaction: 2Al + Al Two O FIVE → 3Al ₂ O (suboxide), leading to matching and eventual failure.
In a similar way, titanium, zirconium, and rare-earth metals exhibit high reactivity with alumina, creating aluminides or complex oxides that endanger crucible integrity and pollute the thaw.
For such applications, alternate crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are favored.
3. Applications in Scientific Research Study and Industrial Processing
3.1 Duty in Materials Synthesis and Crystal Development
Alumina crucibles are main to various high-temperature synthesis courses, consisting of solid-state responses, flux development, and melt processing of practical ceramics and intermetallics.
In solid-state chemistry, they function as inert containers for calcining powders, synthesizing phosphors, or preparing forerunner products for lithium-ion battery cathodes.
For crystal development techniques such as the Czochralski or Bridgman approaches, alumina crucibles are made use of to consist of molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high purity makes sure marginal contamination of the growing crystal, while their dimensional security sustains reproducible development conditions over expanded durations.
In change development, where solitary crystals are grown from a high-temperature solvent, alumina crucibles should withstand dissolution by the flux tool– generally borates or molybdates– calling for mindful option of crucible grade and processing parameters.
3.2 Usage in Analytical Chemistry and Industrial Melting Workflow
In analytical laboratories, alumina crucibles are conventional equipment in thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), where accurate mass measurements are made under regulated environments and temperature ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing environments make them suitable for such precision dimensions.
In commercial setups, alumina crucibles are used in induction and resistance heating systems for melting precious metals, alloying, and casting operations, especially in fashion jewelry, dental, and aerospace component manufacturing.
They are also utilized in the manufacturing of technological ceramics, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and make sure uniform heating.
4. Limitations, Dealing With Practices, and Future Product Enhancements
4.1 Operational Restraints and Best Practices for Long Life
Despite their effectiveness, alumina crucibles have distinct functional limits that must be valued to make certain safety and security and efficiency.
Thermal shock stays the most usual root cause of failing; for that reason, progressive home heating and cooling cycles are vital, specifically when transitioning through the 400– 600 ° C range where residual tensions can build up.
Mechanical damages from mishandling, thermal biking, or call with difficult products can launch microcracks that circulate under anxiety.
Cleansing ought to be carried out thoroughly– avoiding thermal quenching or unpleasant techniques– and made use of crucibles ought to be inspected for signs of spalling, staining, or contortion prior to reuse.
Cross-contamination is an additional worry: crucibles used for reactive or harmful materials should not be repurposed for high-purity synthesis without comprehensive cleansing or ought to be thrown out.
4.2 Arising Fads in Compound and Coated Alumina Solutions
To expand the capabilities of traditional alumina crucibles, researchers are creating composite and functionally graded materials.
Instances include alumina-zirconia (Al two O ₃-ZrO ₂) compounds that boost strength and thermal shock resistance, or alumina-silicon carbide (Al ₂ O TWO-SiC) variations that boost thermal conductivity for more uniform heating.
Surface area coverings with rare-earth oxides (e.g., yttria or scandia) are being checked out to create a diffusion obstacle against reactive steels, therefore expanding the range of suitable melts.
Additionally, additive manufacturing of alumina parts is arising, allowing personalized crucible geometries with interior networks for temperature tracking or gas flow, opening up brand-new possibilities in procedure control and reactor design.
To conclude, alumina crucibles stay a cornerstone of high-temperature innovation, valued for their integrity, purity, and flexibility throughout clinical and commercial domain names.
Their proceeded advancement with microstructural engineering and crossbreed product style guarantees that they will certainly stay essential devices in the development of materials science, energy modern technologies, and progressed manufacturing.
