1. The Nanoscale Architecture and Product Science of Aerogels
1.1 Genesis and Essential Structure of Aerogel Products

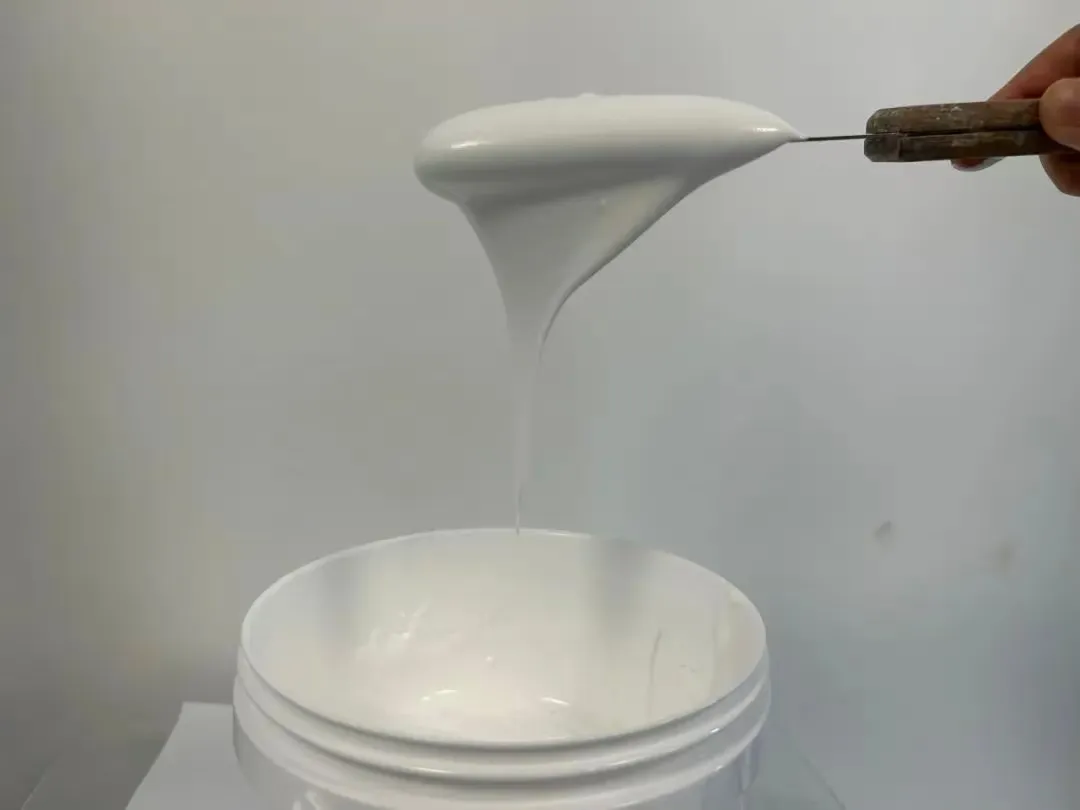

(Aerogel Insulation Coatings)
Aerogel insulation layers represent a transformative development in thermal management innovation, rooted in the one-of-a-kind nanostructure of aerogels– ultra-lightweight, porous materials derived from gels in which the fluid element is replaced with gas without collapsing the solid network.
First created in the 1930s by Samuel Kistler, aerogels stayed mainly laboratory inquisitiveness for years because of delicacy and high manufacturing prices.
Nonetheless, current breakthroughs in sol-gel chemistry and drying out methods have enabled the integration of aerogel bits right into versatile, sprayable, and brushable coating formulations, unlocking their possibility for prevalent commercial application.
The core of aerogel’s exceptional insulating capacity lies in its nanoscale porous framework: normally made up of silica (SiO TWO), the product displays porosity surpassing 90%, with pore sizes mostly in the 2– 50 nm variety– well below the mean totally free path of air particles (~ 70 nm at ambient conditions).
This nanoconfinement substantially lowers aeriform thermal transmission, as air molecules can not effectively transfer kinetic power with crashes within such restricted areas.
Simultaneously, the solid silica network is engineered to be very tortuous and discontinuous, lessening conductive heat transfer through the strong phase.
The result is a product with one of the most affordable thermal conductivities of any strong recognized– generally in between 0.012 and 0.018 W/m · K at space temperature level– going beyond conventional insulation products like mineral woollen, polyurethane foam, or expanded polystyrene.
1.2 Advancement from Monolithic Aerogels to Composite Coatings
Early aerogels were created as fragile, monolithic blocks, limiting their usage to specific niche aerospace and scientific applications.
The shift towards composite aerogel insulation layers has actually been driven by the demand for versatile, conformal, and scalable thermal barriers that can be put on complicated geometries such as pipelines, shutoffs, and uneven equipment surfaces.
Modern aerogel coverings incorporate carefully crushed aerogel granules (typically 1– 10 µm in diameter) distributed within polymeric binders such as acrylics, silicones, or epoxies.
( Aerogel Insulation Coatings)
These hybrid formulations preserve much of the innate thermal performance of pure aerogels while obtaining mechanical robustness, attachment, and climate resistance.
The binder phase, while a little boosting thermal conductivity, provides important cohesion and enables application via typical commercial approaches including splashing, rolling, or dipping.
Most importantly, the quantity fraction of aerogel bits is optimized to stabilize insulation efficiency with film integrity– generally varying from 40% to 70% by volume in high-performance formulas.
This composite technique protects the Knudsen impact (the reductions of gas-phase conduction in nanopores) while allowing for tunable homes such as flexibility, water repellency, and fire resistance.
2. Thermal Performance and Multimodal Warm Transfer Reductions
2.1 Systems of Thermal Insulation at the Nanoscale
Aerogel insulation finishes achieve their superior efficiency by concurrently suppressing all 3 settings of heat transfer: transmission, convection, and radiation.
Conductive heat transfer is decreased through the combination of reduced solid-phase connectivity and the nanoporous framework that hinders gas particle movement.
Due to the fact that the aerogel network includes very thin, interconnected silica strands (often simply a couple of nanometers in size), the pathway for phonon transportation (heat-carrying latticework resonances) is highly restricted.
This structural layout efficiently decouples adjacent areas of the coating, decreasing thermal linking.
Convective heat transfer is inherently missing within the nanopores because of the lack of ability of air to create convection currents in such confined rooms.
Even at macroscopic ranges, appropriately used aerogel coverings remove air spaces and convective loops that pester conventional insulation systems, particularly in upright or overhead installations.
Radiative warm transfer, which ends up being considerable at raised temperatures (> 100 ° C), is alleviated with the consolidation of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These additives enhance the finish’s opacity to infrared radiation, spreading and taking in thermal photons before they can go across the finish thickness.
The harmony of these devices causes a product that gives equal insulation performance at a portion of the thickness of conventional materials– often achieving R-values (thermal resistance) several times higher each density.
2.2 Efficiency Across Temperature Level and Environmental Problems
One of the most compelling advantages of aerogel insulation coverings is their constant performance across a broad temperature range, generally ranging from cryogenic temperatures (-200 ° C) to over 600 ° C, depending upon the binder system used.
At low temperatures, such as in LNG pipelines or refrigeration systems, aerogel coatings protect against condensation and lower warm ingress more successfully than foam-based alternatives.
At high temperatures, especially in industrial procedure equipment, exhaust systems, or power generation facilities, they secure underlying substrates from thermal deterioration while reducing power loss.
Unlike organic foams that might decompose or char, silica-based aerogel finishes remain dimensionally stable and non-combustible, contributing to easy fire protection techniques.
Furthermore, their low tide absorption and hydrophobic surface treatments (typically achieved by means of silane functionalization) avoid efficiency degradation in moist or damp environments– a typical failing mode for coarse insulation.
3. Formula Techniques and Useful Integration in Coatings
3.1 Binder Selection and Mechanical Home Engineering
The choice of binder in aerogel insulation finishes is essential to stabilizing thermal efficiency with resilience and application convenience.
Silicone-based binders supply excellent high-temperature security and UV resistance, making them suitable for outside and industrial applications.
Acrylic binders give good attachment to metals and concrete, along with simplicity of application and reduced VOC exhausts, perfect for constructing envelopes and a/c systems.
Epoxy-modified solutions improve chemical resistance and mechanical toughness, beneficial in aquatic or harsh settings.
Formulators additionally integrate rheology modifiers, dispersants, and cross-linking agents to make sure uniform fragment circulation, protect against settling, and enhance movie formation.
Versatility is meticulously tuned to avoid breaking throughout thermal cycling or substrate contortion, especially on vibrant structures like development joints or vibrating equipment.
3.2 Multifunctional Enhancements and Smart Coating Prospective
Past thermal insulation, contemporary aerogel coatings are being engineered with added performances.
Some solutions include corrosion-inhibiting pigments or self-healing agents that extend the life-span of metallic substrates.
Others integrate phase-change materials (PCMs) within the matrix to offer thermal energy storage space, smoothing temperature changes in buildings or digital enclosures.
Emerging research study checks out the integration of conductive nanomaterials (e.g., carbon nanotubes) to make it possible for in-situ surveillance of coating stability or temperature distribution– paving the way for “clever” thermal management systems.
These multifunctional capacities position aerogel coverings not just as passive insulators yet as energetic components in intelligent facilities and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Adoption
4.1 Energy Performance in Building and Industrial Sectors
Aerogel insulation finishes are significantly deployed in commercial structures, refineries, and nuclear power plant to reduce energy intake and carbon exhausts.
Applied to vapor lines, boilers, and warm exchangers, they dramatically reduced warmth loss, enhancing system efficiency and minimizing gas need.
In retrofit circumstances, their thin profile enables insulation to be added without major architectural modifications, protecting area and minimizing downtime.
In domestic and industrial building and construction, aerogel-enhanced paints and plasters are utilized on wall surfaces, roof coverings, and windows to enhance thermal convenience and minimize HVAC tons.
4.2 Niche and High-Performance Applications
The aerospace, auto, and electronics sectors leverage aerogel coatings for weight-sensitive and space-constrained thermal monitoring.
In electrical lorries, they safeguard battery packs from thermal runaway and outside warmth resources.
In electronic devices, ultra-thin aerogel layers protect high-power parts and prevent hotspots.
Their usage in cryogenic storage space, room environments, and deep-sea equipment emphasizes their integrity in severe settings.
As producing scales and costs decline, aerogel insulation coverings are positioned to end up being a cornerstone of next-generation lasting and durable framework.
